Casting Arms

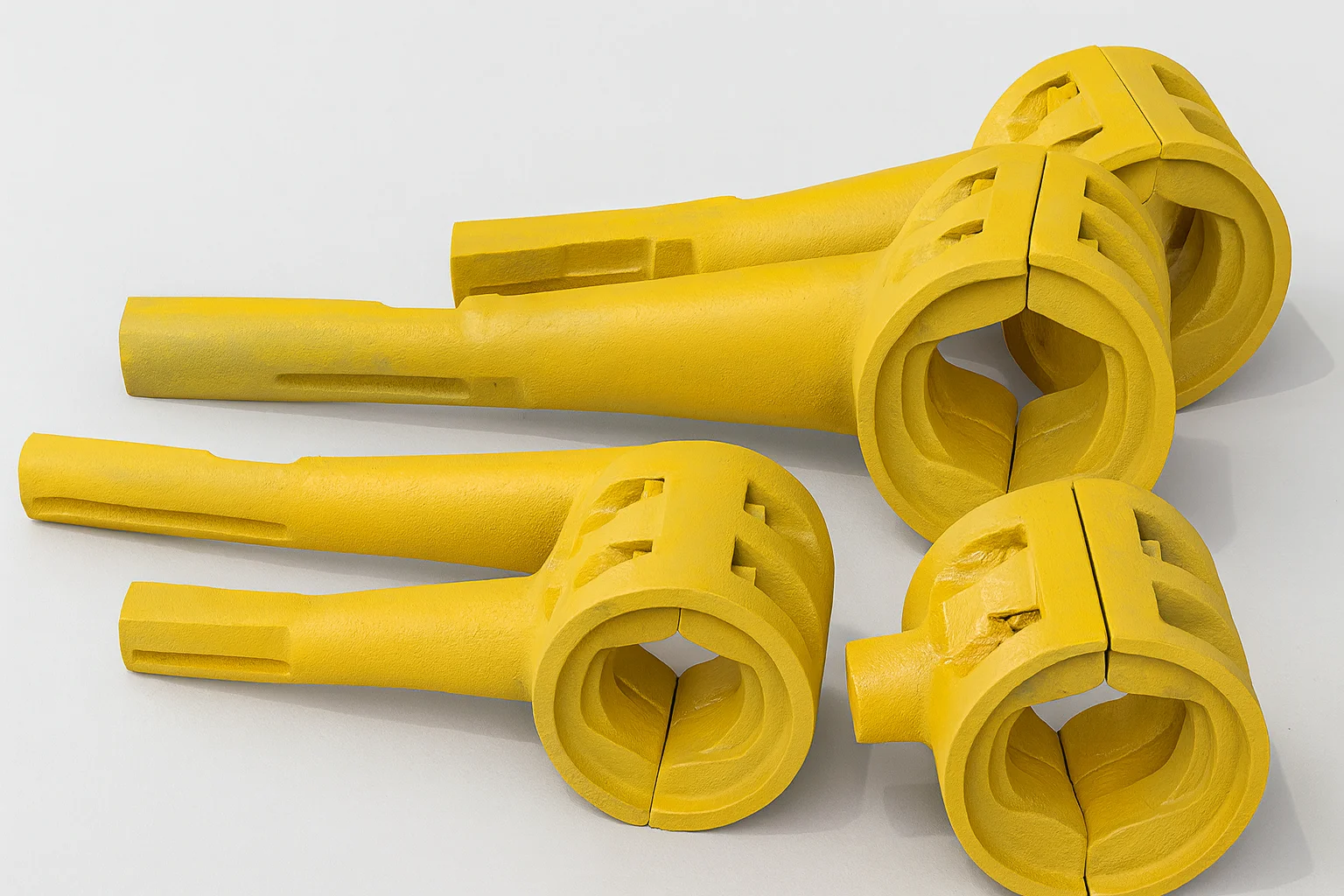

Kedson Alloys & Spares manufactures high-quality Casting Arms using premium yellow foundry patterns designed for accurate and repeatable metal casting. These precision-built patterns ensure excellent dimensional stability, smooth surface finish, and consistent mould formation for pump parts, clamp components, and various industrial casting applications.
- Pattern Type: High-strength Foundry Grade Polyurethane / Wood / Composite (Yellow Patterns)
- Casting Material: High Chrome Iron / SG Iron / Alloy Steel
- Tolerance: ±0.5 mm – ±1 mm depending on pattern accuracy
- Hardness: 350–600 BHN (application-based)
Description
Kedson Alloys & Spares manufactures high-quality Casting Arms using premium yellow foundry patterns designed for accurate and repeatable metal casting. These precision-built patterns ensure excellent dimensional stability, smooth surface finish, and consistent mould formation for pump parts, clamp components, and various industrial casting applications. Each Casting Arm is engineered to deliver accuracy, strength, and long service life in demanding operational environments.
Our advanced foundry techniques, combined with durable pattern materials and skilled craftsmanship, help achieve uniform castings with minimal machining requirements. Whether used in concrete equipment, mechanical assemblies, or heavy-duty industrial systems, our Casting Arms ensure precise fit, optimal functionality, and reliable performance across production batches.
Technical Specifications
| Parameter | Details / Range |
|---|---|
| Pattern Material | High-strength Foundry Grade Polyurethane / Wood / Composite (Yellow Patterns) |
| Casting Material | High Chrome Iron, SG Iron, Mild Steel, Alloy Steel |
| Dimensions | Customized as per pump arm or clamp part requirements |
| Tolerance | ±0.5 mm – ±1 mm depending on pattern accuracy |
| Surface Finish | Smooth finished castings requiring minimal machining |
| Manufacturing Process | Foundry Pattern Making → Moulding → Metal Casting → Heat Treatment → Machining |
| Hardness (If Alloy/Cast Iron) | 350–600 BHN (application-based) |
| Customization | Shape, size, weight, mounting points, slots, holes |
| Batch Production | Prototype, pilot batches, and large-volume production |
| Quality Standard | Precision-cast arms for high dimensional accuracy and durability |
Applications
- Used for casting accurate pump arm components.
- Ideal for producing clamp arms for industrial equipment.
- Suitable for high-strength casting parts in machinery.
- Applied in concrete and construction equipment casting.
- Used in foundries for repetitive precision mould production.
- Supports automated casting lines requiring stable patterns.
- Useful in OEM part reproduction and replacement casting.
- Works for custom engineering projects needing cast metal arms.
Why Choose KedsonTech
Precision Patterns
Accurate patterns ensure highly consistent casting results.
Durable Materials
Strong pattern materials guarantee long operational life.
Superior Accuracy
Tight tolerances deliver perfect final component dimensions.
Custom Configurations
Designed to match exact pump or clamp requirements.
Reduced Machining
Smooth castings minimize finishing and production time.
Reliable Consistency
Every batch maintains uniform quality and performance.
